10 BOXES PER ORDER MINUMUM

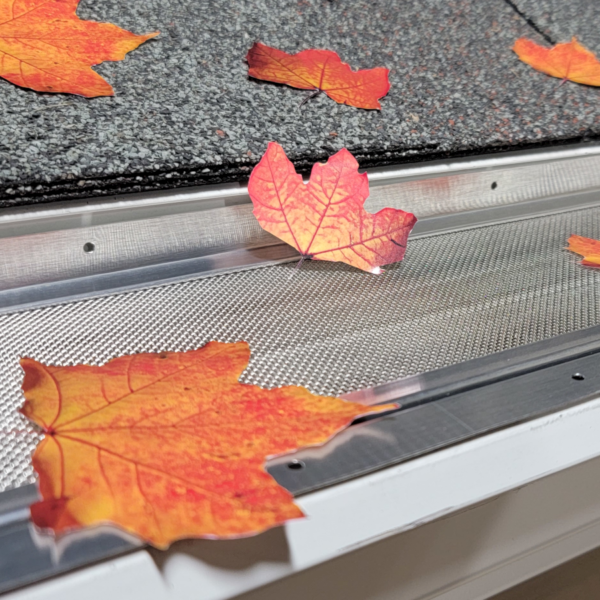

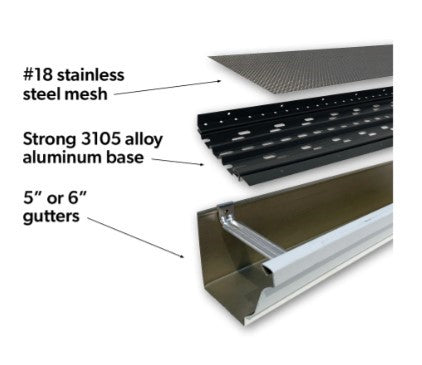

Hallett Dynamic Flo is a premium gutter guard product, made in the USA using a strong 3105 alloy aluminum base with 18-gauge steel mesh. Hallett Dynamic Flo has a tighter weave than other products and is installed by screwing it into the back of the gutter (fascia), then zip screwing it on top of the outer lip of the gutter. (All screws are included)
Hallett Dynamic Flo’s tight weave combined with louvers creates an air flow system above and below the screen. This allows more water to be transported through the gutter, making it a great solution for high water flow conditions. It has a snug fit and protects against smaller items such as pine needles, maple seed pods (whirlybirds), and smaller oak leaves.
INSTALLATION INSTRUCTIONS
1. Install end cap(s) as needed

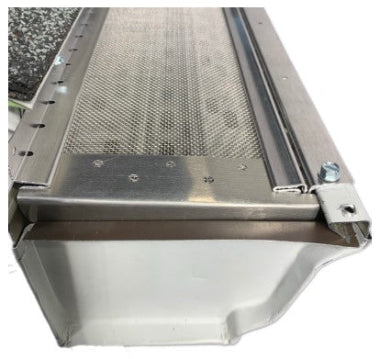

- Slide end cap into the screen track (over screen) push till tight against panel. Place panel tight against end cap to start your run.
2. Fastening Dynamic Flo
- Make sure front of panel is over nose of gutter
- Screw #8 x 1/2” screw at each end and one in the middle (screws included)
- For 8’ panels, place screws approx. every 24” apart

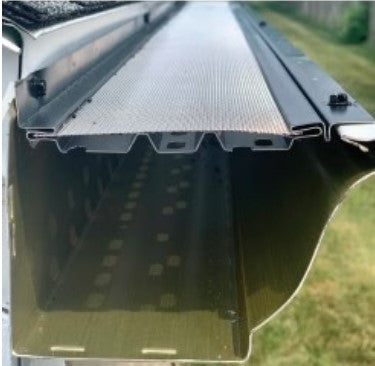

3. Dynamic Flo is designed to fit snugly under the drip edge against the back of the fascia.
- Screw #10 x 1” screws to the back of the panel into the fascia
- IMPORTANT: DO NOT screw #10 x 1” screw to the front of the panel as it will most likely result in some distortion of the panel and gutter.
4. Measure the end of run and cut panel using snips or a metal saw, ensure end caps are firmly inserted.
Each box of Hallett Dynamic Flo includes:
- Comes in 8 ft. sections (120 ft. carton contains 15 pieces). These require special skid shipping, a minimum of 10 boxes per order, and must accept delivery by carrier.
- Includes 60 – #8 x 1/2″ Screws in matching color (3 per panel)
- Includes 60 – #10 x 1″ Hi Hex Head Zinc Screws (3 per panel)
- Includes 4 – Endcaps (universal left or right)
- Available in Mill or Black
- Installation Instructions
- Additional ship time may be required
