How Gutter Splash Guards Help Control Roof Valley Overflow
Share
A gutter can handle water fine across most of a roofline and still overflow in one problem spot.
Roof valleys are a common reason.
Instead of spreading runoff across a long section of gutter, a valley concentrates water into a much smaller area. During heavy rain, that concentrated flow can hit the inside corner hard enough to shoot over the front of the gutter.
That is where gutter splash guards can help.

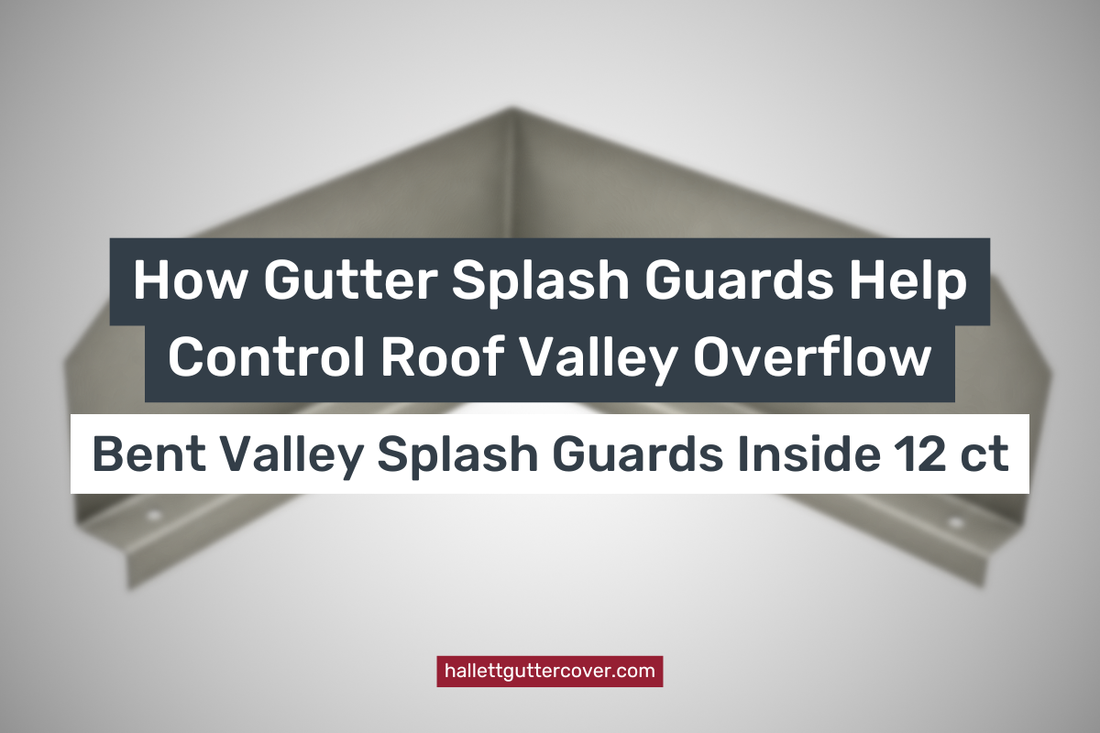

The Hallett Bent Valley Splash Guards Inside 12 ct are designed for inside valley locations. They attach to the outer gutter lip and help redirect concentrated water toward the adjoining gutter sections instead of allowing it to overshoot the corner. Hallett builds them from .027 aluminum, with a 3-inch height and 8-inch legs. Each guard is predrilled and includes matching screws.
The important part for contractors is knowing when a splash guard addresses the actual problem and when the gutter system needs more than an added piece of aluminum.
How Gutter Splash Guards Help at Roof Valleys
Roof valleys collect runoff from two adjoining roof planes.
That can put much more water into one short section of gutter than the straight runs on either side receive.
During lighter rain, the existing gutter may handle it without an issue.
During a hard downpour, you may see:
- Water shooting over the front of the inside corner
- Streaking or staining below the valley
- Soil erosion directly beneath the overflow
- Water hitting siding or trim
- Customers reporting that only one part of the gutter overflows
- Evidence that the gutter works normally everywhere else
A valley splash guard adds height at that concentrated-flow point.
Instead of letting the first burst of water run straight over the front edge, the guard helps contain and redirect that flow into the adjoining gutter runs.
Hallett's Bent Valley Splash Guard is specifically shaped for inside valleys and attaches at the gutter's outer lip.
That makes it a targeted solution.
It is not something that needs to be installed across the entire gutter system.
Why Roof Valleys Create More Overflow Problems
Think about the difference between rain falling directly onto a straight gutter run and water traveling down a roof valley.
Along a straight run, runoff enters over a larger area.
At a valley, water from two roof planes is concentrated into a narrow path.
The gutter beneath that valley may have to handle a sudden volume of water that is much higher than the surrounding sections.
Several conditions can make the problem worse:
- Steeper roof pitches
- Large roof areas feeding the valley
- Multiple roof planes
- Inside corners
- Heavy rainfall
- Poor outlet placement
- Limited downspout capacity
- Improper gutter pitch
- Debris restricting the gutter or outlet
That is why contractors should diagnose the overflow before installing anything.
If water is simply overshooting an otherwise functional inside corner, a splash guard may help.
If the entire gutter run is backing up, the problem is probably farther downstream.
Check the Gutter System Before Adding a Splash Guard
A splash guard should not be used to hide a drainage problem.
Before installing one, inspect the rest of the system.
Check gutter pitch
Water still needs somewhere to go after the splash guard redirects it.
Confirm that the gutter is pitched toward the outlet and is not holding standing water.
Check the outlet
A restricted or undersized outlet can cause water to back up during heavy flow.
If the problem area is near a roof valley, outlet placement becomes even more important.
Hallett's guide on when to use a 3 x 4 rectangular outlet on gutter jobs explains why outlet size, location, gutter pitch, and downspout capacity need to work together.
Check the downspout
Make sure water can leave the gutter as quickly as the roof is feeding it.
A splash guard can keep water inside the gutter at the valley, but it cannot make an overloaded downspout move more water.
Check for debris
Leaves and other material around the outlet can create an overflow problem that looks like a capacity issue.
Clear the system and test it before changing the hardware.
Look for existing overshoot marks
Water staining can tell you a lot.
If the overflow is concentrated directly below the valley while the surrounding gutter performs normally, that supports the case for adding a valley splash guard.
When a Bent Valley Splash Guard Makes Sense
The best application is a localized inside-valley overshoot problem.
Consider a splash guard when:
- The gutter performs normally away from the valley
- Water is visibly shooting over the inside corner
- The gutter and downspout are otherwise clear
- Pitch is correct
- The outlet can handle the water once it reaches it
- The problem appears mainly during heavier rainfall
The Hallett Bent Valley Splash Guard extends 3 inches above the gutter and uses two 8-inch legs to cover the inside-valley area. It comes in 12-count cartons and is available in multiple gutter colors.
That makes it useful both for planned installations and for correcting a specific overshoot problem on an existing system.
When Gutter Splash Guards Are Not Enough
There are situations where adding more height at the valley will not solve the problem.
Watch for these conditions.
Water is backing up across the entire gutter
That points toward a drainage or capacity issue rather than simple overshoot.
Check the gutter pitch, outlet, and downspout.
The outlet is too far from the heavy-flow area
If water has to travel a long distance before it can leave the gutter, the system may struggle during heavy rainfall.
The gutter is holding standing water
Fix the pitch or support issue first.
The downspout is restricted
Water cannot leave the gutter faster than the downspout allows.
The gutter itself is too small for the roof conditions
A splash guard may help keep some water from jumping over the front, but it does not increase the capacity of the full gutter run.
This distinction is important when customers describe a problem as "the gutter overflowing."
Find out where it is overflowing and why before choosing the fix.
Splash Guard vs Extreme Miter for Inside Corner Overflow
Hallett offers more than one approach to heavy valley flow.
A Bent Valley Splash Guard is added to the gutter at the valley to help contain water that would otherwise overshoot.
An Extreme Miter takes a different approach.
The 5 Inch Extreme Miter Inside Gutter Corner uses an extended front and enlarged catch area to help direct heavy roof-valley runoff into the gutter trough instead of over the front edge.
Hallett has also covered that application in Stop Inside Corner Overflows with 5 Inch Extreme Miter Gutters. The article focuses specifically on inside-corner overflow caused by concentrated valley flow.
The decision comes back to the job.
If you're working with an existing inside corner and need to control overshoot, an added splash guard may be the practical solution.
If you're building or replacing the corner itself, an Extreme Miter may deserve consideration.
Do not automatically use the same solution on every valley.
Splash Guard Gutters Still Need Enough Drainage Capacity
Adding a splash guard changes what happens at the top edge of the gutter.
It does not change what happens at the outlet.
Once the water is contained, it still has to travel through:
Gutter → outlet → downspout → discharge
That entire path needs to handle the flow.
This is especially important when you're dealing with a large valley.
If the splash guard successfully stops the overshoot but the gutter then fills faster than the outlet can drain it, the water problem has only moved.
Before wrapping up the job, verify:
- The gutter is pitched correctly.
- The outlet is clear.
- The downspout is clear and properly sized for the system.
- The discharge path is open.
- The gutter remains supported under heavy water load.
A good fix follows the water all the way through the system.
Do Not Confuse a Valley Splash Guard With a Splash Block
The names are similar, but the products work in completely different places.
A gutter splash guard installs up at the gutter, typically where concentrated roof runoff is creating an overshoot problem.
A splash block goes at ground level below the downspout.
The Hallett Splash Block is designed for ground-level discharge and measures 13 3/4 inches wide by 12 inches long, with four spikes used to hold it in place.
So if somebody refers to a "splash guard gutter" setup, make sure everyone is talking about the same part of the drainage system.
Valley splash guard: controls concentrated water at the gutter.
Splash block: handles water after it exits the downspout.
Two different products. Two different problems.
Consider Gutter Guards and Valley Flow Together
Fall installations often involve gutter protection at the same time contractors are dealing with heavy valley runoff.
That makes valley locations worth extra attention.
A gutter guard changes the surface water has to cross before entering the gutter.
The roof valley is still concentrating the same runoff.
When planning gutter protection around an inside corner, inspect:
- Guard style
- Water-entry area
- Roof pitch
- Valley location
- Inside corner
- Outlet location
- Downspout capacity
Hallett's recent guide on what to confirm before ordering louvered gutter guards also highlights valleys and other high-flow areas as conditions contractors should identify before installation.
The point is not to avoid gutter protection around valleys.
It is to plan the water path instead of treating every foot of the roofline the same.
Installation Details Matter With Valley Splash Guards
The Hallett Bent Valley Splash Guard is predrilled and includes matching screws. The guard is built from .027 aluminum and measures 3 inches tall, with each leg extending 8 inches.
Before fastening it, make sure the position matches the actual water path.
The center of the guard should line up with the area receiving concentrated valley flow.
Then check:
- Contact with the outer gutter lip
- Alignment with the inside valley
- Screw placement
- Clearance around any existing gutter protection
- Color match
- Water path into both adjoining gutter runs
Do not place the splash guard based only on where the inside corner looks symmetrical.
Place it where the water actually hits.
Build Valley Components Into the Gutter Supplies List
Splash guards are easy to overlook because they are not needed on every run.
That is exactly why they can get missed when crews load material.
If a job has roof valleys, make those locations part of the takeoff.
Check for:
- Inside miters
- Valley splash guards
- Outlets
- Downspout capacity
- Fasteners
- Sealant
- Gutter protection transitions
Hallett's Miters collection includes standard and specialty inside-corner products that can be reviewed when you're planning those areas.
The goal with gutter supplies is not to load every possible accessory.
It is to identify the problem areas before the crew leaves.
Check the Valley Before the Next Heavy Rain
Roof valleys deserve more attention than a normal straight gutter run.
They concentrate water.
They create more pressure on inside corners.
And when water overshoots, the customer notices quickly.
If the gutter, outlet, and downspout are working properly but heavy rain is still jumping the front edge below an inside valley, a Bent Valley Splash Guard can provide a targeted way to help redirect that water back into the gutter system.
The Hallett Bent Valley Splash Guards Inside 12 ct come predrilled with matching screws and are designed specifically for those inside-valley locations.
Check the valley, confirm the drainage path, and fix the actual source of the overflow before fall rain finds it for you.
Frequently Asked Questions
What do gutter splash guards do?
Gutter splash guards add height at areas where concentrated runoff can overshoot the gutter. At inside roof valleys, they can help redirect heavy water flow toward the adjoining gutter sections instead of allowing it to shoot over the front edge.
Where should gutter splash guards be installed?
They are commonly used where roof valleys discharge concentrated water into an inside gutter corner. The Hallett Bent Valley Splash Guard is specifically designed to attach to the outer gutter lip at inside-valley locations.
Do gutter splash guards fix every gutter overflow problem?
No. They can help with localized overshoot, but they do not correct poor gutter pitch, blocked outlets, undersized drainage, restricted downspouts, or other system-capacity problems.
What is a splash guard gutter setup?
A splash guard gutter setup generally refers to adding a raised guard at a high-flow gutter location, such as below a roof valley, to help contain and redirect runoff into the gutter. Contractors should still check the full drainage path before adding the guard.
Are splash guard gutters the same as splash blocks?
No. A gutter splash guard works at the roofline to help contain concentrated runoff. A splash block sits below the downspout at ground level and helps manage water after it leaves the downspout.
How tall is the Hallett Bent Valley Splash Guard?
The Hallett Bent Valley Splash Guard is 3 inches tall, and each leg extends 8 inches. It is constructed from .027 aluminum and comes predrilled with matching screws.
What is the difference between a valley splash guard and an Extreme Miter?
A valley splash guard is added at the gutter edge to help contain water that is overshooting an inside-valley area. An Extreme Miter replaces the inside corner itself with an enlarged catch area designed to handle concentrated valley runoff.
Should contractors check roof valleys when installing gutter guards?
Yes. Roof valleys concentrate water into smaller areas, so contractors should evaluate valley locations, water-entry conditions, gutter capacity, outlet placement, and downspouts when planning gutter protection.
