When Long Gutter Runs Need an Expansion Joint
Share
A long aluminum gutter run does not stay exactly the same length all year.
Metal expands as it heats up and contracts as it cools down. On a short residential run, that movement may be small enough that contractors rarely think about it.
On a long uninterrupted run, it deserves attention.
If the gutter is locked tightly between corners, end conditions, fasteners, and other fixed points, repeated temperature changes can put stress on joints and the gutter itself.
A gutter expansion joint gives the system a planned location to accommodate that movement.

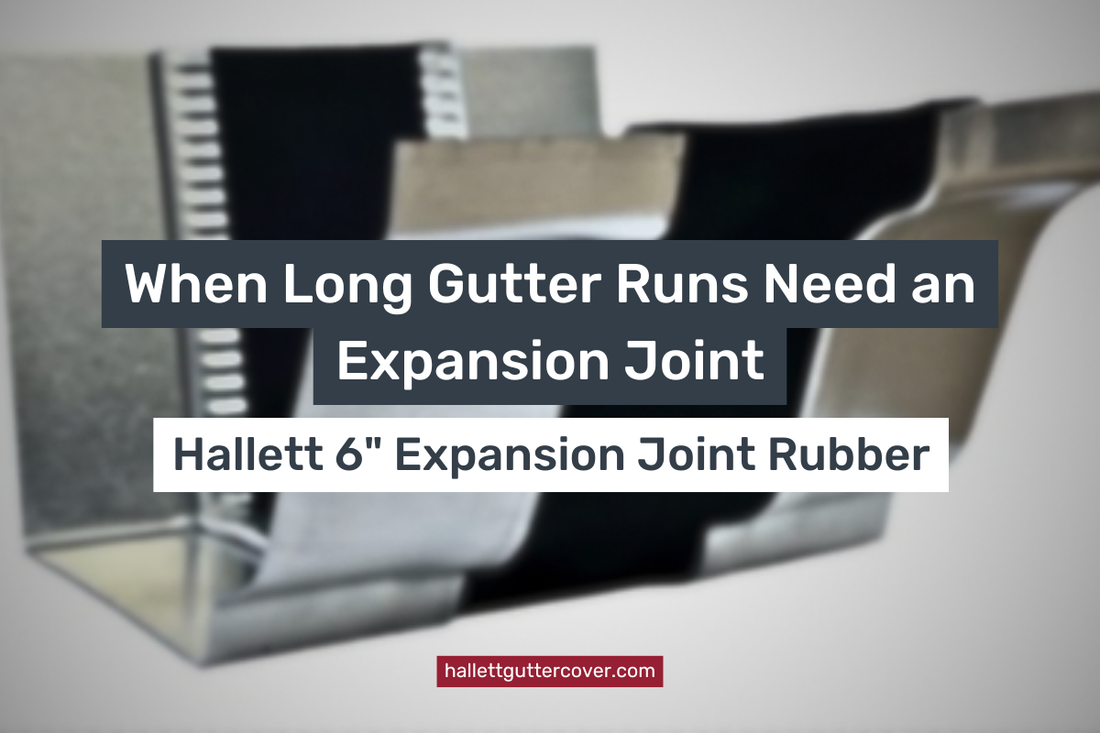

The Hallett 6" Expansion Joint Rubber is made for 6-inch gutter applications. Hallett currently lists it in a rubber configuration using .032-gauge aluminum, available individually or in cases of 12.
The important part is knowing when the run calls for expansion planning in the first place.
Why Long Gutter Runs Move With Temperature Changes
Aluminum changes dimension as its temperature changes.
It gets longer when it warms and shorter when it cools.
One technical roof-drainage reference shows that a 50-foot aluminum length can change by about 25/32 inch across a 100°F temperature swing. The exact movement on a real gutter depends on its length and the temperatures it experiences.
That may not sound like much.
Across a long piece of formed metal that is attached to fascia and tied into corners, miters, outlets, and end conditions, it matters.
Think about a gutter installed during hot summer weather.
As temperatures drop into late fall and winter, the aluminum contracts.
Then it expands again as temperatures rise.
That cycle continues year after year.
A good installation needs to account for that movement instead of assuming the gutter stays dimensionally fixed.
What a Gutter Expansion Joint Is Designed to Do
An expansion joint creates a controlled break in a long gutter run so sections can move with temperature changes.
Without that planned movement point, stress has to go somewhere.
Depending on the system, repeated expansion and contraction can put additional strain on:
- Seams
- Miters
- End conditions
- Fasteners
- Sealant joints
- Gutter walls
- Attachment points
That does not mean every leak, split seam, or loose fastener is caused by thermal expansion.
It means movement should be part of the installation plan on long runs.
Do not turn one planning number into a universal field rule.
Look at the complete job.
Long Runs Need More Planning Than Just More Gutter
Contractors already know that a 20-foot run and a 70-foot run are different jobs.
Expansion is one reason.
Long runs also change the way you need to think about:
- Gutter pitch
- Outlet locations
- Downspout quantity
- Hanger layout
- Inside and outside corners
- Fixed end conditions
- Building movement
- Water volume
- Seams and transitions
The longer the uninterrupted metal run, the more important it becomes to understand where movement can occur.
Do not fabricate a long elevation as if it were simply several short runs added together.
Plan it as a system.
Do Not Pick Expansion Joint Locations Without Looking at Drainage
An expansion joint affects more than movement.
Its location also needs to work with the drainage plan.
One roof-drainage technical reference notes that an expansion joint can act as a dam within a gutter, which means expansion-joint placement and downspout placement need to be considered together.
That is an important field point.
You do not want to solve a thermal-movement problem and accidentally create a water-flow problem.
Before setting the joint location, look at:
- High points
- Low points
- Gutter pitch
- Outlet positions
- Downspout locations
- Roof valleys
- Concentrated runoff
- Inside and outside corners
Water still needs a clear path out of each section of gutter.
Expansion planning and drainage planning should happen at the same time.
What to Check Before Using a 6 Inch Expansion Joint
Do not add an expansion joint based only on total footage.
Start with the entire installation.
Confirm the gutter size
The featured Hallett product is for a 6-inch gutter system.
Do not assume size from the building or downspout.
Measure or confirm the fabricated profile.
Measure the uninterrupted run
Know the distance between fixed conditions.
A long straight run between corners may behave differently from several shorter runs broken up by building geometry.
Identify fixed points
Look at where the gutter is restrained.
That can include:
- Corners
- End conditions
- Building transitions
- Connected sections
- Other details that limit movement
Map the outlets and downspouts
Do this before deciding where an expansion joint belongs.
The water still needs a complete drainage path on both sides of the joint.
Check the project requirements
Commercial work, architectural sheet-metal projects, and specified systems may already define how expansion is to be handled.
Follow those requirements.
Account for local temperature range
A gutter in a location with large seasonal temperature swings experiences a different movement cycle than one in a mild climate.
That does not change the material.
It changes how important movement planning can become.
Expansion Joints Are Not a Repair for Bad Gutter Pitch
An expansion joint handles movement.
It does not correct drainage.
If the gutter is holding water because the pitch is wrong, adding an expansion joint will not fix it.
Before installation, confirm:
- The high points are established.
- Each section has a workable path to an outlet.
- Water is not trapped by the joint layout.
- Downspouts can handle the planned drainage area.
- The gutter remains properly supported.
Treat pitch and expansion as separate requirements that need to work together.
Expansion Joints Are Not a Substitute for Proper Gutter Hangers
Movement control and gutter support are also different jobs.
The expansion joint gives the metal room to move.
The gutter hangers still have to keep the gutter supported and aligned.
Long runs deserve particular attention because they put more material, more water, and potentially more snow or ice load on the attachment system.
Hallett's guide on How to Use 6 Inch Hidden Hangers for a Stronger, Cleaner Install covers support considerations for 6-inch K-style systems, including long straight sections and other higher-load areas.
If the fascia is weak or the gutter is poorly supported, fix that problem.
Do not expect an expansion joint to compensate for it.
For the hardware side of the installation, Hallett's 6" Hidden Hangers give contractors a 6-inch support option when the job calls for hidden hanger installation.
Watch the Corners on Long Gutter Systems
Inside and outside corners deserve attention when you're planning thermal movement.
Corners change the direction of the gutter and can create fixed conditions depending on how the system is fabricated and installed.
Long runs tied tightly into multiple corners can behave differently from a straight run with more opportunity for controlled movement.
That is one reason expansion-joint planning should happen before fabrication is complete.
Do not wait until the entire gutter is installed and then decide where the metal should move.
Hallett's Miters collection includes standard and specialty corner components for different gutter applications. The expansion joint itself is also included in Hallett's miter and gutter-protection categories.
When a long run includes several corners, map the entire layout before cutting material.
Sealant Does Not Replace an Expansion Joint
This distinction matters.
Sealant is used to seal compatible gutter joints.
It should not be treated as a way to lock a long run together and ignore movement.
If the gutter system needs controlled expansion and contraction, adding more sealant does not remove that need.
Hallett carries Geocel Gutter Sealer 10.3oz as one option for appropriate gutter sealing applications, and the broader Paints and Sealants collection includes other products used around gutter work.
Use sealant where the joint requires sealant.
Use an expansion detail where the system requires movement.
Those are not the same job.
Fasteners Still Matter Around an Expansion Detail
An expansion joint only works as part of the surrounding installation.
Fasteners, hangers, and nearby attachment points still have to support the gutter without defeating the intended movement.
That is why the crew should understand the expansion-joint layout before fastening the complete run.
Do not treat it as one accessory that gets added after everything else is locked down.
When building the material list, Hallett's Screws & Fasteners collection can help keep the supporting hardware in the same planning process.
The specific attachment method should match the gutter system, project requirements, and installation detail.
Where Expansion Problems May Show Up
Thermal movement does not always announce itself with one obvious failure.
On an existing long gutter system, look for patterns.
Possible warning areas include:
- Seams that repeatedly open
- Sealant that repeatedly separates at the same joint
- Distortion along a long straight section
- Stress around corners
- Pulled or shifted connections
- Sections that appear to buckle or bind
- Repeated problems after seasonal temperature changes
Those symptoms do not automatically prove the system needs an expansion joint.
Poor installation, impact damage, fascia movement, bad support, or drainage problems can create similar issues.
Diagnose before replacing parts.
The useful question is not:
“Is this gutter leaking?”
It is:
“Why does this same area keep moving or failing?”
Do Existing Long Gutters Need to Be Retrofitted With Expansion Joints?
Not automatically.
If an existing system is performing correctly, do not create a problem just because the run is long.
A retrofit deserves closer evaluation when you see repeated movement-related failures or when major gutter work is already being performed.
Look at:
- Run length
- Existing joint locations
- Seasonal failure patterns
- Gutter material
- Outlet layout
- Corners
- Support
- Building conditions
Retrofitting an expansion detail can involve more than cutting in one product.
The drainage path and nearby gutter sections may also need to be reconsidered.
Treat it as system work.
Why October Is a Good Time to Think About Expansion
October puts contractors right between two temperature extremes in many markets.
Summer heat is fading.
Cold-weather movement is coming.
That makes fall a good time to review long gutter runs while crews are already handling seasonal service, leaf protection, and drainage work.
You may spot:
- Joints beginning to separate
- Old sealant failures
- Movement at corners
- Loose attachment points
- Long runs with no obvious expansion planning
- Water-routing issues around existing joints
Finding those conditions before winter gives the crew a chance to understand the cause instead of dealing only with the symptom after colder weather arrives.
Add Expansion Planning to the Gutter Supplies Takeoff
An expansion joint should not be the part somebody remembers after fabrication starts.
For long 6-inch runs, build movement planning into the takeoff.
Check:
- 6-inch gutter footage
- Run lengths
- Expansion-joint locations
- Outlet locations
- Downspouts
- Miters
- Gutter hangers
- Fasteners
- Sealant
- End conditions
That keeps the expansion detail connected to the rest of the gutter supplies needed for the installation.
Hallett currently lists the 6" Expansion Joint Rubber individually and in 12-piece case quantities. The product uses .032-gauge aluminum and is made in the USA.
Order quantity should follow the actual layout.
Plan Long Runs Before the Metal Goes Up
Long gutter runs need more thought because water and metal movement are happening in the same system.
The gutter has to stay supported.
It has to drain.
And it has to deal with temperature changes over time.
That is why expansion-joint planning belongs alongside outlet placement, downspout layout, corners, fasteners, and hanger support.
For 6-inch gutter work where the layout calls for a planned expansion detail, the Hallett 6" Expansion Joint Rubber gives contractors a .032-gauge aluminum option available individually or by the case.
Measure the run, map the drainage, identify the fixed points, and plan for movement before fabrication turns a long gutter into one rigid piece.
Frequently Asked Questions
What does a gutter expansion joint do?
A gutter expansion joint provides a planned location for sections of gutter to accommodate expansion and contraction caused by temperature changes. It is part of the system design for managing movement on longer gutter runs.
Why do aluminum gutters expand and contract?
Aluminum changes dimension as its temperature changes. It expands when heated and contracts when cooled. The amount of movement increases with the length of the metal and the temperature change.
How long can a gutter run be without an expansion joint?
There is not one field number that should be applied blindly to every project. Contractors should still follow the project specification, applicable requirements, and the design of the installed gutter system.
Does an expansion joint affect downspout placement?
It can. Expansion details can interrupt the gutter run, so outlet and downspout placement need to be considered as part of the same layout. Do not choose the expansion-joint location without checking the water path.
Does a gutter expansion joint fix poor pitch?
No. An expansion joint deals with movement caused by temperature changes. Gutter pitch still has to direct water toward the outlet.
Can gutter sealant replace an expansion joint?
No. Sealant and expansion joints perform different jobs. Sealant closes compatible joints, while an expansion detail allows planned movement in the gutter system.
Do long 6 inch gutters need more gutter hangers?
Hanger layout depends on the project, fascia, loading, gutter system, weather exposure, and installation requirements. Long runs deserve careful support planning, but an expansion joint and a gutter hanger solve different problems.
What are the specifications for Hallett's 6 inch Expansion Joint?
Hallett currently lists the product in a rubber configuration using .032-gauge aluminum. It is sold individually or in cases of 12.
What gutter supplies should be planned with an expansion joint?
The material list may also include gutter sections, outlets, downspouts, miters, gutter hangers, fasteners, end components, and sealant. Plan those parts around both the drainage path and the required movement of the gutter system.
