When to Add a Hinge to a Gutter Downspout Extension
Share
Getting water into the downspout is only part of the job.
You still have to decide where that water goes once it reaches the ground.
A gutter downspout extension can move runoff farther from the building, but a long extension can also end up across a lawn, walkway, driveway, or work area. When customers have to move the extension for mowing or everyday access, a hinge gives them a cleaner way to do it.

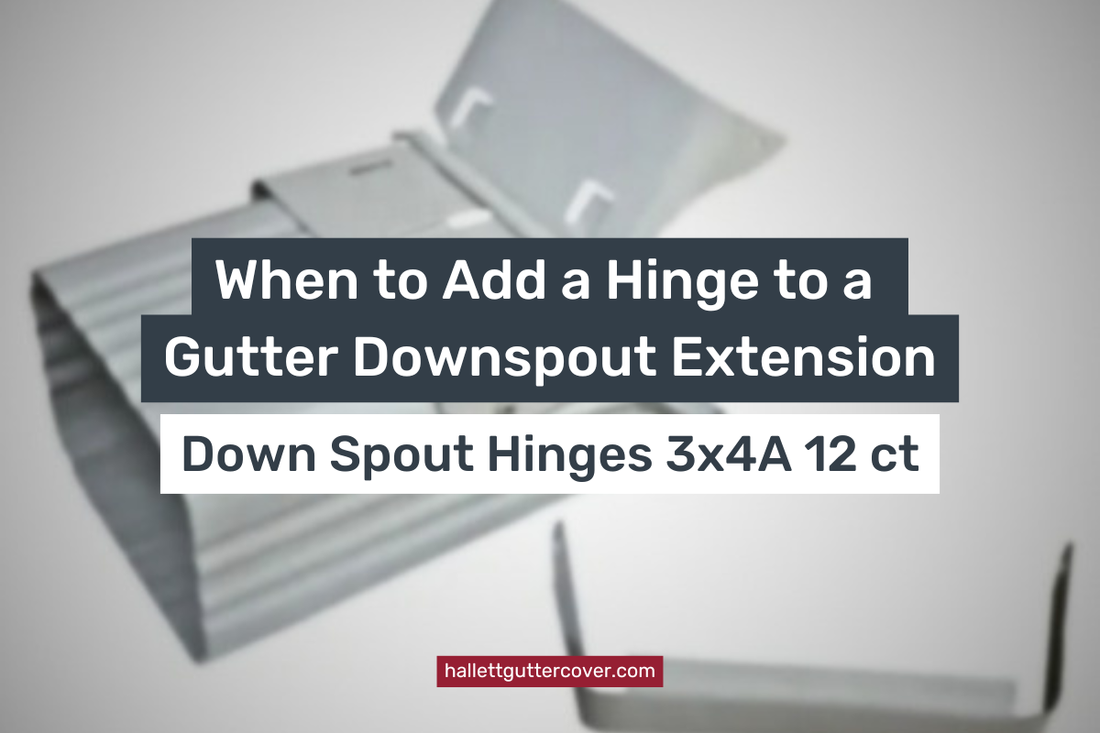

The Hallett Down Spout Hinge 3x4A is built for 3 x 4 A-style downspout extensions. The hinge allows the extension to be raised when access is needed, and the included Universal Side Latch keeps the extension in the raised position. Hallett makes the hinge from .040 galvanized steel with a baked-on powder-coated finish.
For contractors, the bigger point is not just whether a hinge is convenient. It is whether the entire drainage path works when the extension is back in its operating position.
Why a Gutter Downspout Extension Needs a Hinge on Some Jobs
A downspout extension has one main job: carry discharged water farther from the structure.
The problem is that the best place for the extension when it is raining may not be the best place for it every other day.
An extension can interfere with:
- Lawn mowing
- Landscaping work
- Walkways
- Driveway access
- Trash can or equipment storage
- Seasonal maintenance
- Other areas the property owner needs to use regularly
Without a hinge, the customer may pull the extension off whenever it is in the way.
Then comes the next rain.
If the extension never gets put back, water dumps at the base of the downspout instead of following the drainage plan the installer intended.
A hinged setup gives the customer another option. They can raise the extension when they need access and lower it again when the area is clear.
That is especially useful on properties where lawn maintenance makes a permanent extension difficult to work around.
What a Downspout Hinge Actually Does
The hinge does not replace the downspout extension.
It becomes the pivot point between the lower downspout and the extension, allowing that extension to swing upward instead of having to be removed completely.
Hallett's 3x4A hinge is designed for A-style downspout extensions, which Hallett describes as the style that points toward you. It comes with installation instructions and a Universal Side Latch that holds the extension up when raised.
The product is sold in quantities of 12 and is available in six colors:
- Black
- Classic Cream
- Clay
- Low Gloss White
- Royal Brown
- Wicker
That gives contractors options when the hinge will remain visible as part of the finished downspout system.
Hallett also offers a 2 x 3 version, so make sure you confirm downspout size before pulling parts.
When a Hinged Downspout Extension Makes Sense
Not every extension needs to move.
If the discharge can run directly into a buried drain, splash block, or another permanent drainage setup without creating an access problem, adding a hinge may not accomplish much.
A hinge makes more sense when the extension needs to cross or occupy usable space.
Lawns that need regular mowing
This is probably the most obvious application.
If an extension sits across the grass, somebody has to deal with it every time the yard gets cut. A hinged extension can be raised instead of disconnected and thrown aside.
Walkways and work areas
A long extension across an area people regularly use can become an inconvenience.
The extension still needs to direct runoff to the right location, but being able to raise it when conditions are dry can keep that area more accessible.
Properties where extensions keep getting removed
If you see a disconnected extension lying next to the foundation during a service call, there is a good chance convenience is winning over drainage.
A hinged setup can reduce the need to completely remove the extension every time it gets in the way.
Seasonal maintenance areas
Some properties need clear access for landscaping, leaf cleanup, snow equipment, or other seasonal work.
A movable extension can make that easier without permanently changing the drainage layout.
A 3 x 4 Downspout Setup Starts at the Outlet
The hinge is near the bottom of the system, but good drainage planning starts at the gutter.
Water has to move through several connected components:
Gutter → outlet → downspout → elbows or offsets → hinge → extension → final discharge point
Every part affects what happens next.
If the outlet is undersized or poorly positioned, adding a larger downspout or longer extension downstream cannot fix the restriction at the top.
For jobs using a 3 x 4 downspout, Hallett's 3 x 4 Rectangular Outlet creates the transition from the gutter into the downspout.
We've covered that connection in more detail in When to Use a 3 x 4 Rectangular Outlet on Gutter Jobs.
That guide explains why contractors need to consider outlet sizing, downspout sizing, water load, and the ground-level discharge as one drainage system rather than separate parts.
If you're installing a 3 x 4 hinge, that is a good reason to check the rest of the 3 x 4 setup while you're there.
Plan the Final Discharge Before Installing the Hinge
A hinge makes an extension movable. It does not tell you where the water should go.
Before installation, determine where the lowered extension will discharge.
Look at:
- Grade around the building
- Landscaping
- Walkways
- Driveways
- Low areas that already hold water
- Neighboring property
- Existing drainage
- Distance from the structure
- Whether runoff will simply flow back toward the building
The goal is to make sure the extension still lands where it needs to when it is lowered.
If the extension sends water into a bad discharge area, the hinge is working perfectly and the drainage plan still isn't.
For installations where the downspout needs to transition into another drainage component, Hallett also carries Black Downspout Adapters. Hallett's guide on simplifying water flow with a downspout adapter covers how adapters can help connect the downspout to an extension or drainage system.
The exact setup depends on the property. The important part is deciding where the water needs to go before you start fastening components together.
When a Splash Block Makes More Sense
There are jobs where you don't need a long extension at all.
If the grade is favorable and you mainly need to control water coming directly out of the downspout, a Hallett Splash Block may be another option.
Hallett's splash block measures 13 3/4 inches wide by 12 inches long and includes four heavy-duty spikes designed to hold it in place.
The larger lesson is that contractors should not automatically install the same ground-level drainage setup on every house.
Ask what the site actually needs.
A short discharge onto a splash block may make sense on one property. Another may need a gutter downspout extension carrying water farther across the yard. A third may need a connection into a more complete drainage system.
Choose the parts after you understand the water path.
Installation Details That Help Prevent Callbacks
A downspout hinge is a simple accessory, but simple parts can still cause problems when the surrounding setup is rushed.
Before you wrap up the installation, check these details.
Confirm the downspout size
The featured Hallett hinge is designed for a 3 x 4 downspout extension.
Do not assume the size based on the gutter alone.
Confirm the style and orientation
The 3x4A product is an A-style hinge. Make sure you're ordering the correct configuration for the downspout setup you're building.
Keep the extension aligned
When lowered, the extension should line up cleanly with the downspout instead of pulling sideways or putting unnecessary stress on the hinge.
Make the latch accessible
The customer should be able to raise, latch, release, and lower the extension without fighting the hardware.
Check clearance when raised
Make sure the extension has enough room to move through its full range without hitting siding, trim, landscaping, or other obstacles.
Test the operating position
Once the extension is lowered, confirm that it points toward the intended drainage area.
Don't judge the installation only by how clean it looks when the extension is raised.
The working position matters more.
Do Not Forget the Downspout Above the Hinge
A solid extension setup still depends on the downspout being properly secured.
Loose pipe, poor alignment, or badly planned offsets can create problems before water ever reaches the extension.
Depending on the job, that means checking the elbows and the hardware holding the downspout against the structure.
Hallett's full Downspout Accessories collection includes outlets, pipe cleats, clips, fasteners, adapters, hinges, and other parts contractors use to build out the drainage side of a gutter system.
When you're ordering gutter supplies, it makes sense to plan the whole downspout run at once rather than discovering you're one small fitting short after the truck is loaded.
Build the Drainage Path Before You Build the Material List
A good material list follows the water.
Start at the gutter and work your way down.
For a typical 3 x 4 setup, that might mean checking:
- Outlet size and placement
- Downspout size
- Elbows and offsets
- Pipe attachment hardware
- Downspout hinge
- Extension
- Final discharge location
Once the drainage path is mapped out, build the material list around the complete assembly. Check outlets, downspouts, elbows, attachment hardware, hinges, adapters, extensions, and discharge components before loading the truck.
Small missing parts create big interruptions. Planning the complete run at once helps keep the crew moving and reduces return trips for gutter supplies.
When Should You Recommend a Downspout Hinge to the Customer
You do not need to pitch a hinge on every job.
Look for a specific problem it solves.
Recommend one when:
- The extension needs to cross a lawn
- The customer regularly moves the extension
- Mowing access is an issue
- The extension occupies a usable area when conditions are dry
- A removable extension is likely to be left disconnected
- The customer wants easier access without changing the drainage path
Explain it in plain terms.
The extension needs to be down when it's carrying water. The hinge gives you a way to move it when you need access without completely removing it.
That is a better sales conversation than treating the hinge like another accessory to add to the invoice.
Finish the Downspout Job at Ground Level
Contractors spend plenty of time thinking about gutter size, pitch, outlets, and downspout placement.
Don't stop planning when you reach the bottom of the wall.
Where that water goes next matters.
A properly positioned gutter downspout extension can help carry runoff toward the intended discharge area. If that extension regularly gets in the way, adding a hinge can make the setup easier for the customer to live with without requiring them to remove the extension altogether.
The Hallett Down Spout Hinge 3x4A is made from .040 galvanized steel with a baked-on powder-coated finish, includes a Universal Side Latch, and is sold in quantities of 12.
View the Hallett Down Spout Hinges 3x4A and build the ground-level drainage setup around the way the property is actually used.
Frequently Asked Questions
What does a hinge do on a gutter downspout extension?
A hinge allows the downspout extension to swing upward instead of being completely removed when access is needed. The Hallett 3x4A hinge includes a Universal Side Latch designed to hold the extension up when raised.
Can you put a hinge on a 3 x 4 downspout extension?
Yes. Hallett offers a Down Spout Hinge specifically for 3 x 4 A-style downspout extensions. Contractors should confirm both the downspout size and configuration before ordering.
Does a hinged gutter downspout extension still need to be lowered when it rains?
Yes. The hinge makes the extension movable, but the extension needs to be in its intended drainage position when water is flowing through the system. Raising the extension changes where the downspout discharges.
When should a contractor recommend a downspout hinge?
A hinge makes sense when a downspout extension interferes with mowing, landscaping, walkways, maintenance, or another frequently used area. It can also help on properties where extensions are regularly disconnected because they are in the way.
What gutter supplies are needed for a complete downspout run?
The exact list depends on the job, but contractors may need an outlet, downspout, elbows, pipe attachment hardware, fasteners, a hinge or adapter, an extension, and a final discharge solution. Planning the complete water path before ordering helps prevent missing parts.
Is a downspout hinge the same thing as a downspout adapter?
No. A hinge allows an extension to move up and down. An adapter is used to transition or connect the downspout to another extension or drainage component. The two parts solve different installation problems.
Should I use a gutter downspout extension or a splash block?
It depends on the property. A splash block can help control discharge directly below a downspout when site conditions allow it. An extension is used when water needs to be carried farther from the discharge point. Contractors should evaluate grade, drainage, landscaping, access, and where runoff needs to go before choosing either option.
