How to Connect a Gutter Downspout Extension to Underground Drainage

Getting water through the gutter and down the wall is only part of the drainage job.

The next question is where that water goes.

On some properties, an above-ground gutter downspout extension is enough. On others, the downspout needs to connect directly to an underground drain pipe. That connection gets more complicated when the two openings do not line up or the installation has to work around a foundation projection, landscaping, or another obstacle.

That is where a flexible adapter can earn its place in the material list.

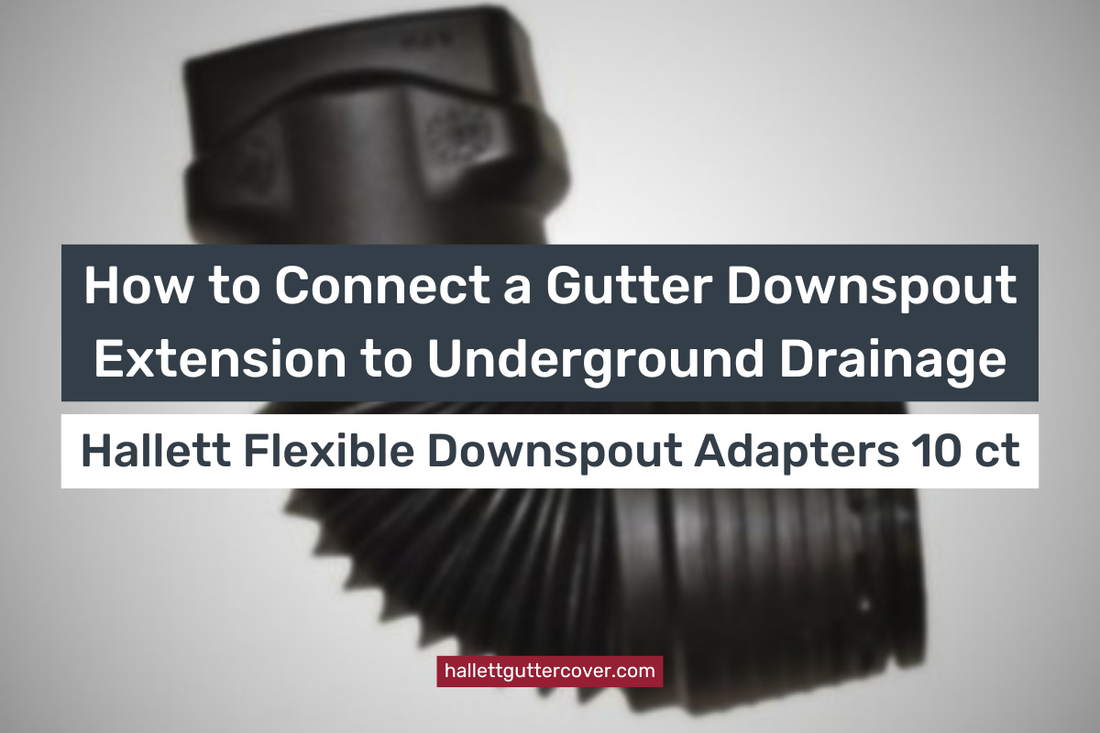

The Hallett Flexible Downspout Adapters 10 ct are designed to connect 2 x 3-inch or 3 x 4-inch downspouts to 4-inch drain pipe. They can expand to 13 1/2 inches and flex around obstacles or offset connections that would be difficult to make with a straight rigid transition. Hallett also lists applications including connecting downspouts to in-ground drainage and joining corrugated pipe to PVC pipe.

The adapter gives you flexibility at the connection.

It does not replace the need to plan where the water goes after that connection.

How a Gutter Downspout Extension Connects to Underground Drainage

There are two common ways to deal with water once it reaches the bottom of a downspout.

One is to keep the discharge above ground with an extension.

The other is to transition into an underground drainage system.

A typical buried-drain setup might look like:

Gutter → outlet → downspout → flexible adapter → underground drain pipe → final discharge

The flexible adapter handles the transition between the rectangular downspout and the round drain pipe.

For Hallett's flexible adapter, the available configurations connect either a 2 x 3-inch or 3 x 4-inch downspout to 4-inch drain pipe.

That is different from a long surface extension running across a yard.

The flexible adapter is a short connection component. Its job is to help the downspout line up with the underground system and move water into the drain pipe.

Why Downspouts and Underground Drain Pipes Do Not Always Line Up

On paper, connecting a downspout to a drain sounds simple.

In the field, the openings are not always directly above one another.

You may run into:

• A drain pipe offset from the downspout
• Foundation projections
• Siding or trim details
• Landscaping edges
• Existing concrete
• Different downspout and drain-pipe shapes
• Older drainage work that cannot easily be moved
• Limited space for rigid elbows or fittings

A rigid connection may require several pieces to make the transition.

A flexible adapter gives the installer some movement between the two points.

Hallett's adapter expands to a total length of 13 1/2 inches, giving contractors room to make short offsets and work around nearby obstacles.

The key word there is short.

This is a connection tool, not a substitute for planning a long drainage run.

When a Flexible Adapter Makes Sense

A flexible downspout adapter makes the most sense when you already know where the water needs to go but need help making the physical connection.

Consider one when:

• The downspout needs to connect to a 4-inch underground drain
• The downspout and drain opening are slightly offset
• A rigid connection would require several fittings
• The connection needs to work around a small protrusion
• The installation transitions from rectangular downspout to round pipe
• Corrugated pipe needs to connect to PVC
• Existing drainage cannot easily be relocated

The goal is not to bend the adapter as far as possible.

The goal is to create a clean transition without unnecessarily complicating the installation.

Flexible Adapter vs Gutter Downspout Extension

These two products are easy to lump together because both deal with water at the bottom of a downspout.

They solve different problems.

A property may use one of these solutions or a combination depending on the drainage layout.

If an above-ground extension needs to cross a lawn, Hallett's guide on when to add a hinge to a gutter downspout extension covers that setup in more detail.

If the downspout needs to feed a buried system instead, a flexible adapter may be the more relevant connection.

Different discharge plan. Different hardware.

Start the Drainage Plan at the Gutter

Do not start at the underground pipe and work backward.

Follow the water from the roof.

A complete drainage path includes:

1. Gutter
2. Outlet
3. Downspout
4. Elbows or offsets
5. Adapter or extension
6. Drainage pipe
7. Final discharge point

Every part affects what happens downstream.

If the outlet is too small, poorly located, or blocked, the flexible adapter at ground level cannot fix the restriction.

For 3 x 4-inch downspout systems, Hallett's 3 x 4 Rectangular Outlet creates the transition from the gutter into the downspout.

The article When to Use a 3 x 4 Rectangular Outlet on Gutter Jobs goes deeper into why outlet sizing, downspout capacity, placement, and final discharge need to be considered together.

A clean underground connection does not help if the restriction is still at the top of the system.

Confirm Downspout Size Before Choosing the Adapter

Hallett's flexible adapter is available for two common downspout sizes:

• 2 x 3-inch downspout to 4-inch drain pipe
• 3 x 4-inch downspout to 4-inch drain pipe

Confirm what is actually installed before pulling parts.

Do not assume the downspout size from the gutter size alone.

Retrofit jobs can have:

• Replacement downspouts
• Mixed components
• Previous drainage repairs
• Different downspout sizes on separate elevations
• Existing underground pipe added after the original gutter installation

Measure first.

Then match the adapter.

That is easier than discovering the wrong transition after the drainage pipe has already been exposed.

Confirm the Underground Drain Before Connecting Anything

The adapter is only as useful as the system it feeds.

Before connecting a downspout to underground drainage, confirm that the drain pipe has a clear path to discharge.

Look for:

• Blockages
• Crushed pipe
• Standing water
• Poor slope
• Disconnected sections
• Root intrusion
• An unknown discharge point
• Water backing up from the buried system

Do not connect a working gutter to a drainage line you already know is failing.

If the buried pipe cannot move the water, connecting the downspout simply moves the backup point.

Water may then rise at the adapter, overflow near the foundation, or back up into the downspout.

Know where the buried drain leads.

Make sure it works before sending more water into it.

Plan Around Obstacles Without Creating a Low Spot

Flexibility is useful.

Too much flexibility can create a different problem.

When routing a flexible adapter around a foundation projection or another obstacle, avoid creating a sag where water and debris can collect.

The connection should still provide a clean path from the downspout into the drainage pipe.

Check:

• Direction of flow
• Adapter alignment
• Low spots
• Kinks
• Connection security
• Clearance around the obstacle
• Whether the drain opening is stable

The adapter should solve an alignment issue.

It should not create another restriction.

Flexible vs Rigid Downspout Adapters

Hallett also carries rigid Black Downspout Adapters for transitioning rectangular or square downspouts to round drainage pipe.

A rigid adapter can make sense when the downspout and drain pipe already align well.

A flexible adapter adds value when alignment is the problem.

Think of it this way:

Rigid adapter: straightforward transition.

Flexible adapter: transition plus short offset capability.

Hallett's earlier article Simplify Water Flow with the Hallett Downspout Adapter covers the broader role of downspout adapters in connecting gutter drainage to extensions and other drainage components.

For the installer, the decision should come back to the actual connection in front of you.

If everything lines up, keep it simple.

If it does not, flexibility may save several fittings.

Connecting Corrugated Pipe to PVC

Hallett also lists joining corrugated pipe to PVC pipe as one use for the Flexible Downspout Adapter.

That can be useful when existing drainage includes more than one pipe type.

The important thing is to treat the connection as part of the entire drainage system.

Before joining different pipe materials, confirm:

• Pipe diameter
• Fit
• Direction of water flow
• Slope
• Connection security
• Condition of the existing pipe
• Final discharge

Do not assume a flexible connection fixes a poorly installed buried system.

It only handles the transition.

What About Above-Ground Drainage

Not every downspout should go underground.

Some properties are better suited to surface drainage.

Depending on the grade and layout, that might mean:

• A gutter downspout extension
• A hinged extension
• A splash block
• Another controlled surface discharge

If the grade naturally carries water away from the structure, adding buried drainage may be unnecessary.

If an extension needs to be moved for mowing or access, the Hallett Down Spout Hinge 3x4A gives contractors another way to manage the ground-level setup.

The important part is choosing the discharge method after looking at the property.

Do not bury water just because an underground pipe is available.

Do not leave it above ground just because an extension is easier.

Follow the drainage conditions.

Check the Final Discharge Point

One of the easiest drainage mistakes is focusing on the connection and forgetting the destination.

An underground system still needs somewhere to discharge.

Before tying the downspout into it, determine where the water ends up.

Check whether the buried pipe:

• Daylights at a lower elevation
• Connects to an approved drainage system
• Runs to another discharge point
• Terminates somewhere that can actually handle the water
• Sends water back toward the structure
• Creates erosion or ponding farther away

The adapter can make the connection look clean.

The job is not finished until the water has a workable destination.

Keep Underground Drainage Connections Serviceable

Ground-level drainage components eventually need to be inspected.

Avoid building a connection that becomes unnecessarily difficult to access later.

If the system backs up in the future, the contractor or property owner may need to determine whether the problem is:

• In the downspout
• At the adapter
• At the drain entrance
• Farther down the buried pipe

A connection that can be inspected without tearing apart the entire lower downspout makes troubleshooting easier.

That is another reason to avoid overcomplicating the transition with more fittings than the job needs.

Build the Complete Drainage Run Into the Gutter Supplies List

A flexible adapter may only be one line on the order.

The job may require several other components.

Before loading the gutter supplies, check:

• Outlet
• Downspout
• Elbows
• Pipe clips or cleats
• Fasteners
• Flexible adapter
• Drain pipe
• Surface extension if needed elsewhere
• Hinge
• Splash block
• Sealant where the system requires it

Hallett's Downspout Accessories collection includes outlets, elbows, adapters, hinges, attachment hardware, and other components used throughout the downspout system.

Build the material list by following the water.

That is easier than organizing it by whatever part happens to be featured on the quote.

Fall Is a Good Time to Check Ground-Level Drainage

October brings more than leaves.

In many markets, fall also means longer periods of rain, saturated soil, and less room for a weak drainage setup to hide.

A system that seemed fine during lighter summer rainfall can start showing problems when water volume increases.

Before fall weather exposes the weak points, inspect:

• Downspout connections
• Underground adapters
• Surface extensions
• Low spots near foundations
• Drain entrances
• Existing buried pipe
• Final discharge areas

If the downspout and underground pipe are slightly offset, the fix may be straightforward.

If the buried drainage is blocked or poorly routed, deal with that problem instead of hiding it behind a new fitting.

Connect the Downspout Around the Actual Job

There is no reason to force a rigid connection when the existing drainage layout does not line up.

There is also no reason to make a simple connection more complicated than it needs to be.

The Hallett Flexible Downspout Adapters 10 ct give contractors a flexible transition from either a 2 x 3-inch or 3 x 4-inch downspout to 4-inch drain pipe. Fully expanded, the adapter reaches 13 1/2 inches and can help route the connection around short offsets or obstacles.

Start with the water path.

Confirm the downspout.

Check the buried drain.

Then use the adapter to make the connection fit the job.

View Hallett Flexible Downspout Adapters and build the ground-level drainage connection around where the water actually needs to go.

Frequently Asked Questions

Can a gutter downspout extension connect to underground drainage?

Yes, but the exact components depend on the system. A downspout can transition into underground drainage using an appropriate adapter. Hallett's Flexible Downspout Adapter connects 2 x 3-inch or 3 x 4-inch downspouts to 4-inch drain pipe.

What does a flexible downspout adapter do?

A flexible downspout adapter transitions a rectangular downspout to round drain pipe while allowing some movement for short offsets and obstacles. Hallett's version expands to 13 1/2 inches.

What sizes do Hallett Flexible Downspout Adapters fit?

Hallett currently offers versions for 2 x 3-inch and 3 x 4-inch downspouts, with both connecting to 4-inch drain pipe.

Can a flexible adapter go around obstacles?

Yes. Hallett lists routing a downspout around obstacles or protrusions as one of the adapter's intended uses. Contractors should still avoid kinks, sags, and low spots that could restrict flow.

Is a flexible downspout adapter the same as a gutter downspout extension?

No. A flexible adapter is primarily a transition component used to connect the downspout to another drainage component. A gutter downspout extension generally carries water farther away above ground.

Can a flexible downspout adapter connect corrugated pipe to PVC?

Yes. Hallett lists joining corrugated pipe to PVC pipe as one application for its Flexible Downspout Adapter.

Should underground drainage be checked before connecting the downspout?

Yes. Confirm that the underground pipe is open, properly sloped, and has a workable discharge point. Connecting a downspout to a blocked or failing drain can simply move the overflow problem to the bottom of the downspout.

What gutter supplies should be checked when connecting a downspout to drainage?

Depending on the job, contractors may need an outlet, downspout, elbows, attachment hardware, fasteners, an adapter, drain pipe, and a final discharge component. Follow the complete water path when building the material list.
